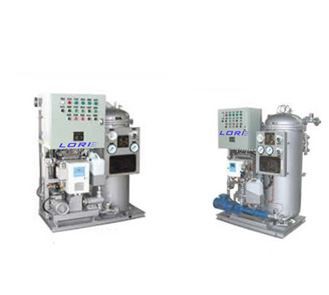

15ppm Bilge Separator is a kind of environmental protection product designed based on International Maritime Organization IMO MEPC.107(49) standard, the oil content in effluent water ≤15ppm. This separator is the high- tech newest product which can effectively dispose all kinds of fluids in bilge water including fuel oil, high-density residual oil and emulsion mixture combined with black ferric oxide and surfactant.

This separator can also be used in industrial and petroleum, besides in ship vessels. The effluent oil content can meet any standards of Environment Bureau in China.

ABS, DNV, BV, GL and other classification societies certificate are available.

By GL-EC approved 15ppm bilge separator, the main parts adopt international famous brands, including electrical control box components provided by Schneider, 15ppm bilge alarm provided by the German DECKMA Ha, screw pump provided by the Mono Pump.

Principle Description：
The device adopts the combination of steam(electrical) heating; the 1st stage cone wave plate gravity and coalesce separation;

the 1st and the 2nd stage fiber filter and the 3rd stage membrane permeation in order to make the treated bilge water to meet the requirements of discharge standard of the resolutions of IMO MEPC.107(49).

Types Description：

We have 0.1 0.25, 0.50, 1,2, 3, 4, 5 ,6 types.

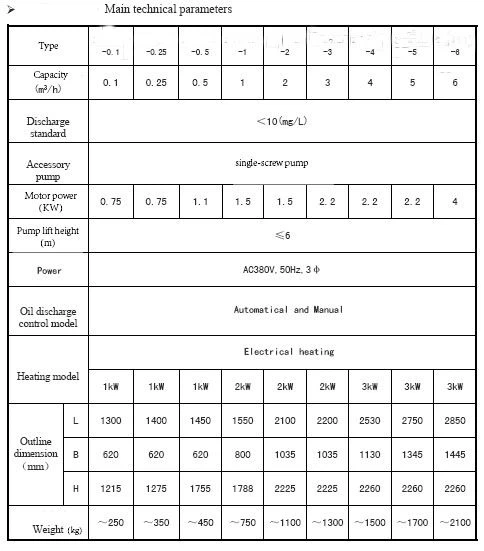

Oily-water Separator Technical Data:

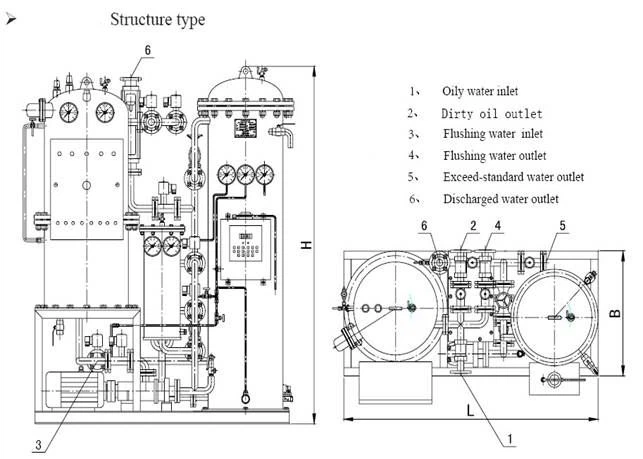

Oily-water Separator Structure:
