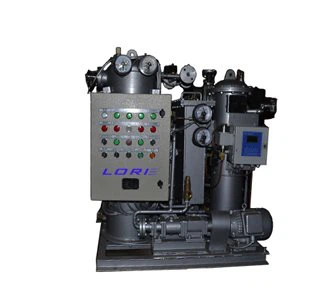

Imo Marine Environment Protection 15ppm Oily Water Separators

We have many years of rich manufacturing experience. We meet the individual needs of customers with advanced design concepts, produce high-quality Marine Propeller Shaft, Marine PVC Fire Hose, Steel Wire Rope for customers and provide comprehensive after-sales services for them. We hope to make our business partners the most trustworthy friends and retain our customers and occupy the market with sincere hearts. We constantly strive to maintain the company's code of conduct, improve the level of governance, and lay a solid foundation for becoming an excellent enterprise. We have top engineers in these industries and an efficient team in the research. Our company has a wealth of experience in production, mass order production capacity.

Use and characteristic:

The oily water is not sucked directly into the special pump of the system to avoid the original oil-water emulsion, to ensure the separation with a high efficiency and to reduce the load of secondary emulsified oil separator, to prolong the life of device accordingly.

When discharged water from first stage separator is over 15ppm, It automatically enter into the second treatment chamber and continue to be treated . Discharging water below 15ppm would be discharged overboard. When the standard of the water from secondary stage are qualified, and after 20 minutes, the device will automatically switch to a working condition I, the process as above. When second stage oil separator treatment function failed and second discharge water is over 15ppm, 15ppm bilge water alarm devices would transmit alarm signal again. the treatment water return to bilge bottom. At this time, the device should be carried out relating to the maintenance or replacement of parts and components, in order to restore function.

When separated dirty oil should be up to the extent of collection on the top of first separator, Oil level detector to transmit signal, the screw pump stop, the water from pressure tank enters into the bottom of the separation device, to be back-flushing reversely through the congregation. Dirty oil on the top to be pressed by the back-flushing water, and discharged into the dirty oil tank.

Main Technical Data for 5 m3/h oily-water Separator:

Capacity: 5 m3/h

Discharge standard: Less than 10(mg/L)

Accessory pump: Single-screw pump

Motor power:2.2 kW

Pump lift height: Equal or less than 6 meters

Power: AC380V,50Hz,3 phase

Oil discharge control model: Auto or manual

Net weight: about 1700kg

We are fully aware that only by continuous reform and innovation, actively developing new Imo Marine Environment Protection 15ppm Oily Water Separators, relying on technological innovation and value innovation, can we create value for money products for customers and win the market. We strive to improve our business performance, innovate our management level and promote the good and fast development of the company. We expect our employees to firmly obey orders, strictly implement the system, and carry out the implementation of disciplinary guidelines with incentives and penalties.
