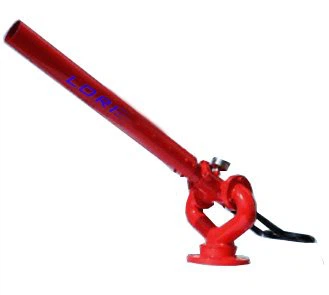

Our PL24~48 manual foam or water monitor with 3” body is a handle-operated, double elbow structured device. It has compact structure and is light to use. According to different work conditions, suitable material can be chosen:
( vehicle- aluminium alloy, petrochemical industry- stainless steel, vessel- stainless steel or copper alloy).
Max. flow:
180m3/hr
Max. working pressure:
1.6Mpa
Horizontal rotation:
360°
Vertical rotation:
-40°~+60°
Material:
body - aluminium casting alloy,
Copper alloy or stainless steel
Foam pipe- stainless steel 304 or 316L
Weight:
about 15kg (aluminium alloy)/ 26kg (copper or stainless steel)
Inlet flange:
DN100 PN1.6Mpa
Manual Foam/Water Monitor Technical Data :
Type | Flow(L/S) | Rated pressure(MPa) | Range(m) | Recoil KN | |
Foam | Water | ||||
PL24 | 24 | 1 | ≥40 | ≥45 | 1.1 |
PL32 | 32 | ≥45 | ≥50 | 1.5 | |
PL40 | 40 | ≥50 | ≥55 | 1.8 | |
PL48 | 48 | ≥55 | ≥60 | 2.2 | |
PL24~48 Manual Foam/Water Monitor Pressure-Range Curve (jet/fog Nozzle) and Pressure-Flow Performance Curve :
