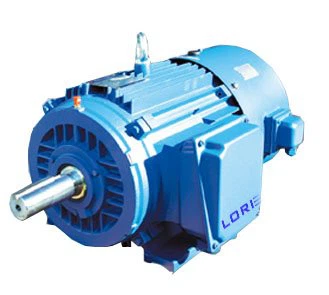

YVF2 Series Converter-fed Three-phase Induction Motor is an electrical machine that converts electrical energy into mechanical energy. The reverse of this would be the conversion ofmechanical energy into electrical energy and is done by an electric generator.
Frame size: 80-355mm
Running zone for constant torque:5-50HZ
Running zone for constant power:50-100HZ
Degree of efficiency:IE1(EFF2)
Degree of protection:IP55
Degree of insulation: F/B,H/B
Different pole and speed can be chosen:
4 pole-1500 rpm synchronous speed Rated power:1.1kW-315kW
6 pole-1000 rpm synchronous speed Rated power:0.75kW-250kW
8 pole-750 rpm synchronous speed Rated power:2.2kW-200kW
The Dimension Mount and Frame Size for B3,B35,B5,V1, and Top Terminal Box data, please ask us for them.
